Laser pin not working correctly on 1.2117

If you think you've found a bug post it here.

Laser pin not working correctly on 1.2117

Postby iOne » Sun Aug 04, 2024 5:45 am

Hi CNCdrive,

I was wondering if you can confirm if anything has been changed for the laser pin/output since version 1.2116. Fill burn (overscanning) is no longer possible on both versions (1.2116 & 1.2117) using the LightBurn plugin. Only lines are possible and the laser sounds like misfiring.

Version 1.2115 is working fine for me on the AXBB-E board.

Also, switching between versions 1.2115 and version 1.2117 requires a firmware update every time when switching in both directions?

Thanks in advance for the answers.
iOne

Posts: 18
Joined: Fri Sep 02, 2022 4:56 am

Re: Laser pin not working correctly on 1.2117

Postby cncdrive » Sun Aug 04, 2024 6:50 pm

Are you talking about the laser plugin of the UCCNC or the using M10/M11 from g-code.
There was an extra function added to the laser plugin of the UCCNC to scan in one direction only for the picture engraving.
Other than that nothing was changed for the laser output.
Can you please post your settings and an example file which causes the issue and also please give some clear explanation of the issue.
cncdrive
Site Admin

Posts: 4901
Joined: Tue Aug 12, 2014 11:17 pm

Re: Laser pin not working correctly on 1.2117

Postby iOne » Sun Aug 04, 2024 11:37 pm

Hi,

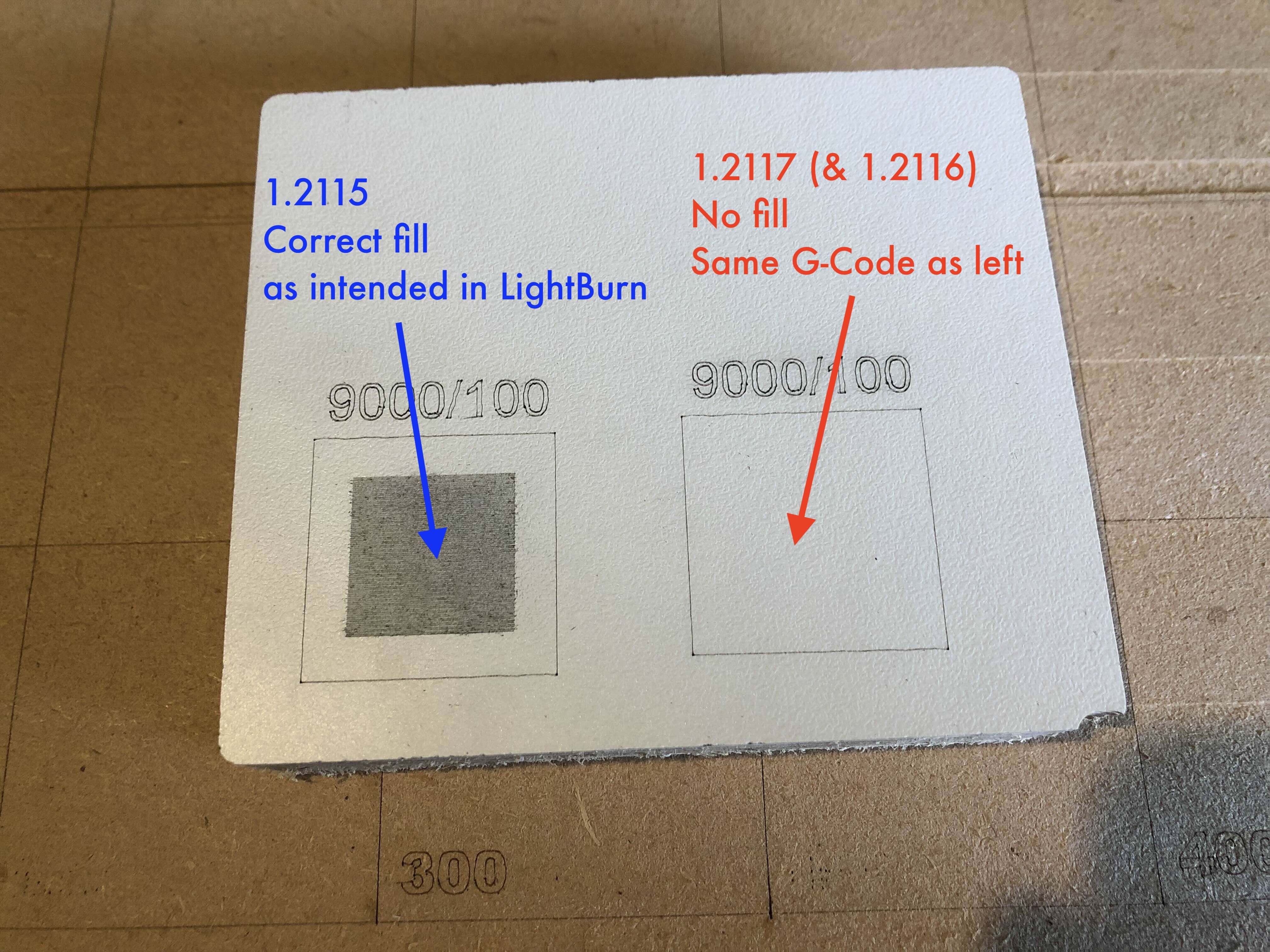

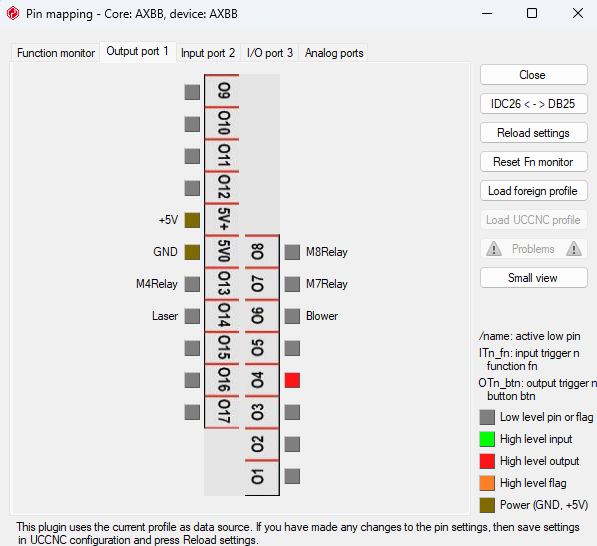

Thank you for replying. I use LightBurn to get the g-code and I load it into UCCNC with the LightBurn Loader Plugin. As you can see in the photo below only lines can be produced with version 1.2117 (no fill - scan). I am unsure if it is a g-code translation problem or the port is not fast enough to turn on-off during the scan. The same g-code translated with the LightBurn Loader Plugin works fine in version 1.2115. I am attaching a few images with my settings and viewer of the file to see if you can detect the problem.

115 vs 117.jpeg


117 Viewer.png


117 Port 1.png


117 Port 2.png


117 Port 3.png


117 Port Anlg.png
iOne

Posts: 18
Joined: Fri Sep 02, 2022 4:56 am

Re: Laser pin not working correctly on 1.2117

Postby iOne » Sun Aug 04, 2024 11:54 pm

I am also attaching the g-codes if that helps...
Attachments
Laser Calibration Test v02.zip
(4.37 KiB) Downloaded 159 times
iOne

Posts: 18
Joined: Fri Sep 02, 2022 4:56 am

Re: Laser pin not working correctly on 1.2117

Postby cncdrive » Mon Aug 05, 2024 8:43 am

Thank you.
We will test it soon.
cncdrive
Site Admin

Posts: 4901
Joined: Tue Aug 12, 2014 11:17 pm

Re: Laser pin not working correctly on 1.2117

Postby cncdrive » Tue Aug 06, 2024 1:11 pm

We could reproduce the issue and working on fixing it.
cncdrive
Site Admin

Posts: 4901
Joined: Tue Aug 12, 2014 11:17 pm

Re: Laser pin not working correctly on 1.2117

Postby iOne » Tue Aug 06, 2024 8:20 pm

Thank you. Is this a plugin issue or something to be fixed in future 1.2118?
iOne

Posts: 18
Joined: Fri Sep 02, 2022 4:56 am

Re: Laser pin not working correctly on 1.2117

Postby cncdrive » Wed Aug 07, 2024 11:39 am

No, its not plugin issue, but something with the path optimiser incorrectly optimising out the laser switching codes.
We working on fixing it and will release 1.2118 soon.
Our plan is to get a zero bug version out asap and put it in official release.
So now we not adding new features, just fixing bugs and working on new hardware (breakout board and motherboard and motion controller) development.
cncdrive
Site Admin

Posts: 4901
Joined: Tue Aug 12, 2014 11:17 pm

Re: Laser pin not working correctly on 1.2117

Postby santiniuk » Mon Sep 30, 2024 7:29 pm

Hi, also experiencing the same issue reported.
But that appears to be my only negative finding with V1.2117.
Any timing for this fix with the 1.2118 release?

Thanks
santiniuk

Posts: 19
Joined: Fri Oct 01, 2021 10:06 pm
Location: U.K

Re: Laser pin not working correctly on 1.2117

Postby iOne » Mon Nov 11, 2024 8:21 am

Hi CNCDrive,

Any news on the ETA for the new 1.2118 release?
iOne

Posts: 18
Joined: Fri Sep 02, 2022 4:56 am
