G02 and G03

[skovnesky]

I'm trying to write g code using G02 and G03 with variables commands. It won't let me use a variable for the Z end position. The x end works fine. When I try to use a variable for Z UCCNC version 1.2111
will not load the program back from editor. It doesn't show any error just won't load program until I put the number back in then it works fine.

[Robertspark]

can you show the actual examples of what works and what does not work

[skovnesky]

This is the G code that works. When I replace the numbers for Z with the variable #2 then it doesn't. thanks

[ger21]

It would be much better if you post the code that DOESN'T work.
And what version of UCCNC you are using.

[skovnesky]

This is the one that doesn't work. I'm using version 1.2111

[dhanger]

Looks like you need a G18 for an arc in the XZ plane?

[skovnesky]

I do have a G18 at top of g code

[dhanger]

Oops, sorry. I'm so used to my programs having several lines of comments at the top I just passed right over it.

[Robertspark]

I can see there is a problem (is it doesn't work if you change Z-0.250 for Z#2)

but I cannot see why it does not work or allow the file to even load (I tried a few things to get it to work + load)

but just a side note, looking at the cut paths, I think you are going to suffer from tool rubbing because of the thinning of the cut path at the end of the cut.

[dezsoe]

It seems to be a bit complicated. (I tested on both 1.2113 and 1.2049.)

If I change Z to Y and go back to the G17 plane then all works fine:

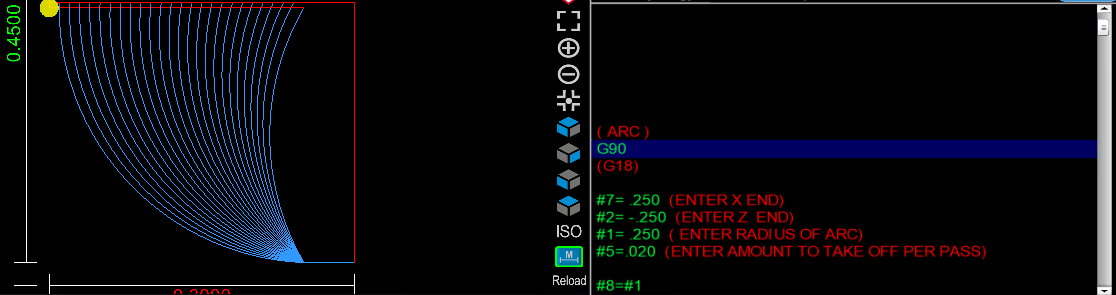

If I load the original (bad) code and put a G17 before the M30 then it displays with the Z#2, but the arcs are in the bad direction and also leaving the X-Z plane:

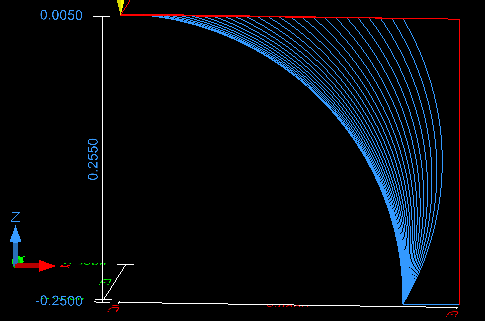

If I use the original (bad) code and change Z#2 to Z-.250 then the arcs are in the X-Z plane:
