by dezsoe » Fri Oct 20, 2023 9:16 am
Hi Michal,
Sorry, I try to do my best to reply everyone.

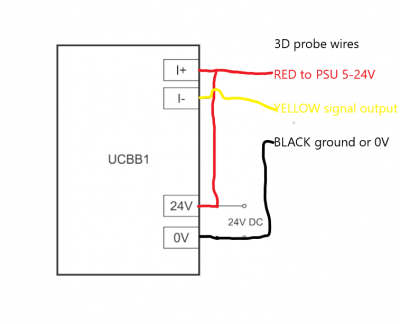

First of all, the probe screen works using the Probing.dll, while the Probe button calls the M31 macro. Anything you set on the probe screen will be used if you press the "Start probing" button, the M31 macro is independent.
If you want to use the probe screen then the first you have to do is to set some values that are needed. Here is a list of the required settings for a milling machine:
1. setup page
- set the Safe Z coordinate in machine coords
- turn on Greater Z is safer in G17. This tells the probing that it has to move the Z up
2. any probe page
- set the Fast and Fine feed values. Normally, the probe screens probes twice: first using the fast feed and second the fine feed. Fast feed depends on the type of your probe and your acceleration settings: the probing axis has to decelerate without damaging the probe or the workpiece, but if you select too slow then the probe will take a long time. For the Fine feed the slower it moves the more accurate result you get. (E.g.: I use 200 mm/min for fast and 25 mm/min for fine feed)
- set the Fine distance. When a fast (first) probe is successful then the axis retracts this distance to take the fine (second) probe. Normally 1 mm is perfect
When you select a probe mode then on the button the big dot is the starting point. There is also an info line where you can read what will happen if you press the Start probing button.
To do a simple probe you'll need to select an axis and to set the P1 value. As you can see on the Simple probe button it will start probing to maximum the P1 value. This means that if you want to probe in Z downwards then you need to set a negative P1 to move down. E.g.: if you have P1 set to -30 then you have to stay less then 30 mm away from the target, because it will search for contact in -30 mm.
Now must work.
