Looking for an PAID expert at UCCNC macro writing

[twedlake]

ok RsX. I spent a couple of days trying to understand this and I think I've got it.

I do have another question that I don't understand please pertaining to the "automatic" calculation of feed rate for spindle movement when probing. I get that it's automatic, but automatic to what exactly - how are these FeedrateFast and FeedrateSlow calculated?

[RsX]

Hello twedlake, good to hear that you are trying to understand it.

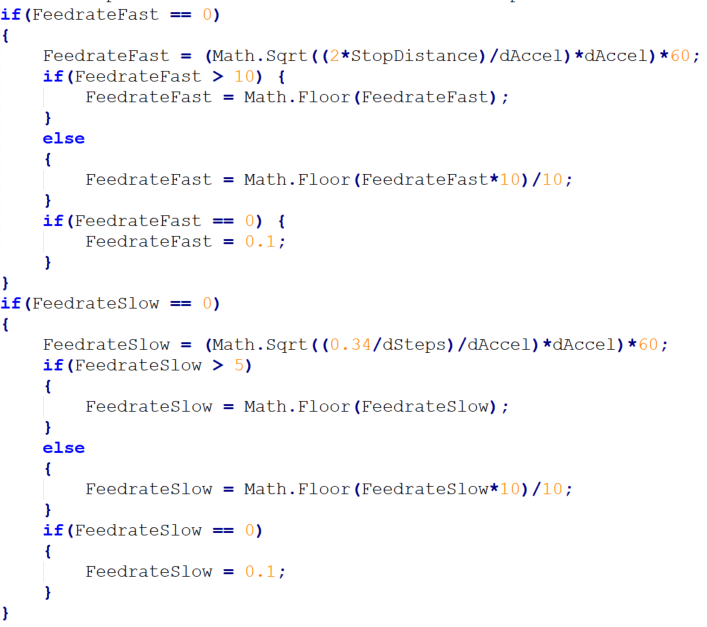

The calculation of the feedrates is somewhat interesting and at the same time total nonsense.

There are also other formulas that could have been written easier.
For example here, but at the end of the day newY - newY is nothing, so there is nothing to worry about

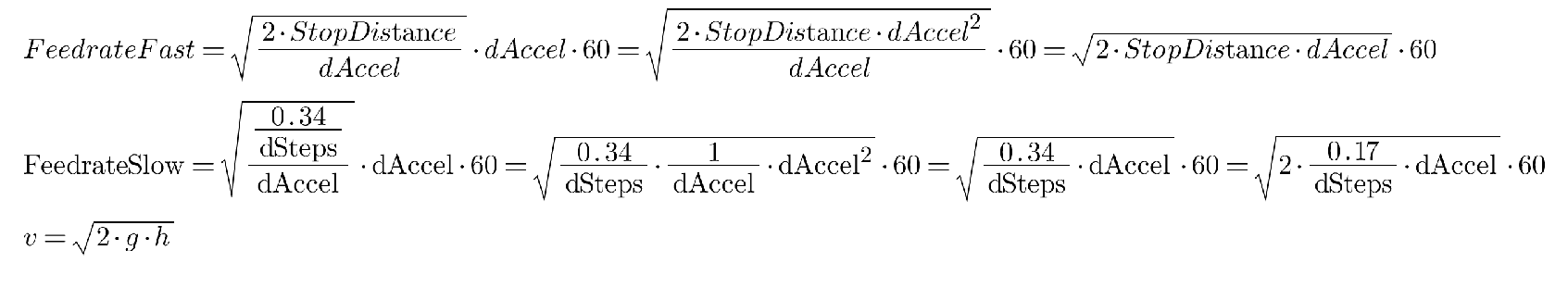

So back at the feedrate calculation, writing it in a more familiar way and rearranging the terms we end up with a formula (first one) that looks the same as the speed of an object in free fall (last one).
In other words, the macro is calculating the initial speed were the Z axis can come to a stop, with a constant deceleration, in 0.02mm. We are also using that SAME speed for EVERY other axis.

Then it calculates the slow feedrate, but now it uses a stop distance of 0.17/(Z steps per unit). Same for imperial and metric units, I'm not sure why.
StopDistance is 0.02mm, dAccel is the acceleration of Z axis and dSteps is the Z axis steps per unit.
What are your Z acceleration and step/units values?

[twedlake]

Hello twedlake, good to hear that you are trying to understand it.
The calculation of the feedrates is somewhat interesting and at the same time total nonsense.


There are also other formulas that could have been written easier.
For example here, but at the end of the day newY - newY is nothing, so there is nothing to worry about


This is the conclusion I have drawn as well. Seems like it was developed in an very overly-complicated way.

So back at the feedrate calculation, writing it in a more familiar way and rearranging the terms we end up with a formula (first one) that looks the same as the speed of an object in free fall (last one).
In other words, the macro is calculating the initial speed were the Z axis can come to a stop, with a constant deceleration, in 0.02mm. We are also using that SAME speed for EVERY other axis.


Then it calculates the slow feedrate, but now it uses a stop distance of 0.17/(Z steps per unit). Same for imperial and metric units, I'm not sure why.
StopDistance is 0.02mm, dAccel is the acceleration of Z axis and dSteps is the Z axis steps per unit.
What are your Z acceleration and step/units values?

Z - Steps Per Unit = 4233.3342
Z - Velocity = 150
Z - Acceleration = 25

X - Steps Per Unit = 4233.3342
X - Velocity = 250
X - Acceleration = 25

Y - Steps Per Unit = 4233.3342
Y - Velocity = 250
Y - Acceleration = 25

[RsX]

Ok, I needed a some time to crunch all these numbers in both systems of measurement.
These should be your probing feedrates


These are mine (confirmed by running the macro)


It is my understanding that the slow feedrate aims to stop the machine in a sixth of a step (0.17 is about 1/6). Why, still not sure. Maybe a rule of thumb.
This also means that the less steps per unit you have, the faster you are going to probe.
Both results seems pretty high for my liking but, if the machine is capable of such performances, theoretically they should work.

Maybe these formulas don't take into account the backlash of the ballscrew.
For example if the ballscrew has 0.05mm of backlash, the screw stops in 0.02mm, but the spindle keeps moving by inertia and stops 0.03mm after.
This probably means that the spindle collides with the puck and transfers parts of its energy to the puck that moves away. Like the Newton's cradle I have on my desk


This is my best guess.
Have you tried setting slower feedrates? Do they make a difference?

[Battwell]

you can purchase a real probe that has sprung over travel. (normally closed connection that opens on contact )
using a tool and relying on "contact circuit making" is very amateur. and prone to failure.
also depends on cutting edge contact or shank contact first- another error gotcha.

on my machines with a sprung probe first feedrate of 1m/minute is fine.
second probe after a small retract at 50mm/min.
