Huanyang VFD plugin

Postby Gene8522 » Tue Aug 14, 2018 4:22 pm

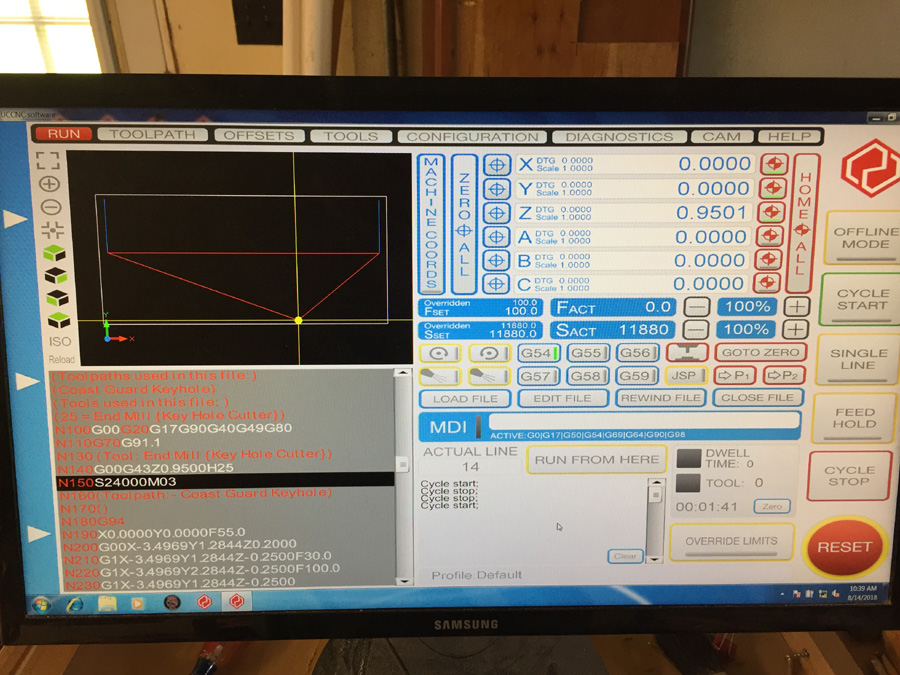

I have Mach3 with Screenset 2010 and the Huanyang works just fine. But I'm having problems wit a new install of UCCNC using the Huanyang plugin. I can control the VFD from UCCNC but the control setting for the VFD from UCCNC don't have the right settings. If i run a G-code that calls for 24000 rpms the VFD will only run at 11880 RPMs.

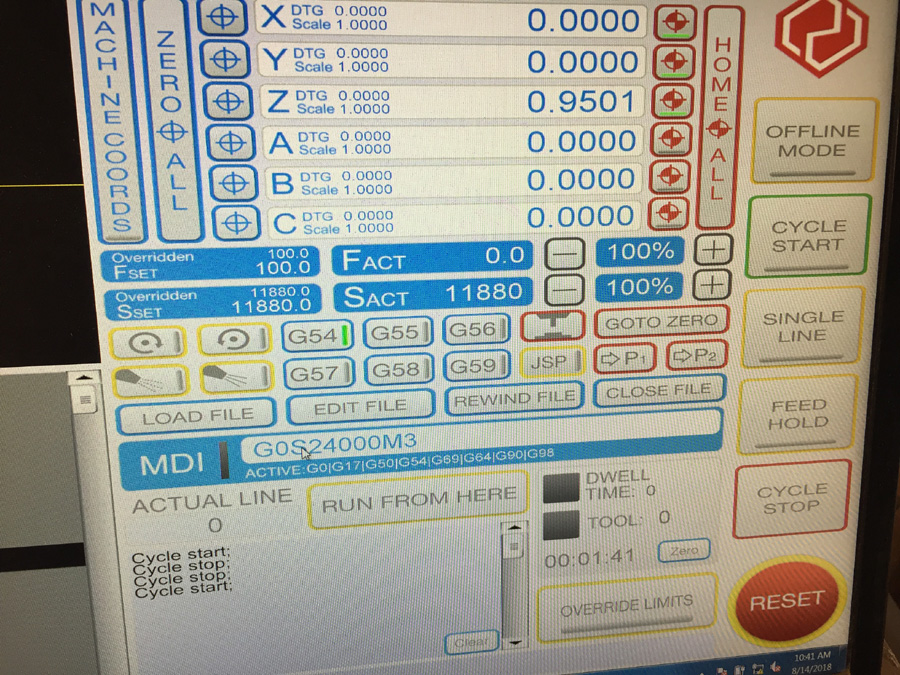

If I put a speed setting in the 'MDI' of G0s24000M3, the spindle will only run at 11880.
Has anyone else seen this?
Attachments

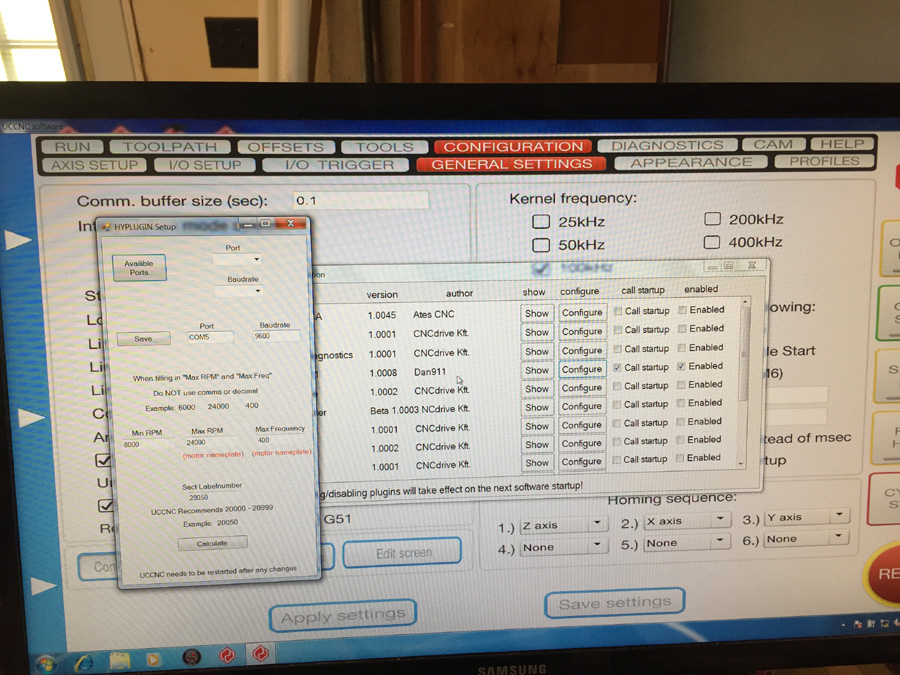

IMG_1833 resized.jpg
IMG_1832 resized.jpg
IMG_1831 Resized.jpg
Gene8522

Posts: 20
Joined: Fri Aug 10, 2018 2:50 am

Re: Huanyang VFD plugin

Postby Dan911 » Tue Aug 14, 2018 5:24 pm

Make sure PD144 is set to 3000.

I also see your using and old version, use link below for newer version.

http://www.thecncwoodworker.com/uccnc.html
Dan911

Posts: 423
Joined: Mon Oct 31, 2016 1:22 am
Location: USA

Re: Huanyang VFD plugin

Postby Gene8522 » Tue Aug 14, 2018 6:47 pm

I checked the PD settings and installed HY12. The Config - Spindle page will not let me change the spindle velocity Max above 11880 rpms. On the run page the "Overridden" DRO will not go above 11880. And the VFD spindle control will not go above 11880.
Gene8522

Posts: 20
Joined: Fri Aug 10, 2018 2:50 am

Re: Huanyang VFD plugin

Postby Dan911 » Tue Aug 14, 2018 8:13 pm

Go to "CONFIGURATION/AXIS SETUP/SPINDLE" and check "PWM Spindle".

Remember to Save settings in UCCNC.
Dan911

Posts: 423
Joined: Mon Oct 31, 2016 1:22 am
Location: USA

Re: Huanyang VFD plugin

Postby Gene8522 » Tue Aug 14, 2018 10:28 pm

Hay Dan,
Good news I reset "PWM Spindle" and now I have full control of the Spindle!!! :D :D
There is always a 'BUT'.
I'm trying to run the 2017 screenset, when I opened the program for 2017 screen the spindle would not run at all.
I reinstalled 2017 Screenset to see if it would import the settings from UCCNC but none of the imported setting are there.
I tried to manually setup the settings but there are things that will not set like ; 'Active Low' and 'PWM spindle' check boxes.
I can input the ports & pins numbers but that's about all.

The UC300ETH is working because I see changes in the diagnostics when I touch the moveable touchoff plate.
Gene8522

Posts: 20
Joined: Fri Aug 10, 2018 2:50 am

Re: Huanyang VFD plugin

Postby Dan911 » Tue Aug 14, 2018 11:23 pm

Every profile has its own file for saved settings so a new profile won't import from another.

With 2017 Screenset or any new profile you will need to configure plugin all over again like you did for the default. With the 2017 screenset you need to change the RPM field # to 2451 in screen edit.

I'm happy to help with any questions, I would appreciate you posting in the Huanyang Plugin thread located in the plugin section of this forum, it keeps all
info together and makes it easier for others who search with a problem, threads like this get buried and lost.

Thanks,
Dan
Dan911

Posts: 423
Joined: Mon Oct 31, 2016 1:22 am
Location: USA

Re: Huanyang VFD plugin

Postby ger21 » Wed Aug 15, 2018 1:33 am

If the checkboxes don't work in the 2017 Screenset, then you didn't finish the installation. See the manual, and follow the instructions. You have to manually copy all of the 2017 screenset macros into your profile macro folder.


I reinstalled 2017 Screenset to see if it would import the settings from UCCNC but none of the imported setting are there.


The screenset is just, that, a screenset. It contains no settings. The settings are stored in your profile, which is independent of the screenset.
Gerry
UCCNC 2017 Screenset - http://www.thecncwoodworker.com/2017.html
ger21

Posts: 1143
Joined: Sat Sep 03, 2016 2:17 am

Re: Huanyang VFD plugin

Postby Gene8522 » Wed Aug 15, 2018 3:17 pm

I'm sorry but I over looked, manually copy all of the 2017 screenset macros. Now I have 2017 Screenset running. But here is my new problem. I changed the RPM: DRO to 2451 but when I close the 2017 Screenset and restart I loose the settings and the RPM: DRO goes back to the default 840. When I do an edit screen and reset RPM: everything works until I turn the PC off.
At least I am almost there. :D
Gene8522

Posts: 20
Joined: Fri Aug 10, 2018 2:50 am

Re: Huanyang VFD plugin

Postby ger21 » Wed Aug 15, 2018 3:25 pm

After you change the number, while still in the screen editor, click on the File tab and click Save Screenset.
Gerry
UCCNC 2017 Screenset - http://www.thecncwoodworker.com/2017.html
ger21

Posts: 1143
Joined: Sat Sep 03, 2016 2:17 am

Re: Huanyang VFD plugin

Postby Gene8522 » Wed Aug 15, 2018 4:10 pm

Thank You Gerry
I seem to have everything working :D :D :D :!:
Gene8522

Posts: 20
Joined: Fri Aug 10, 2018 2:50 am
